TVS KING DELUXE
Features
- 32 Ah Battery Capacity
- 9 hp Power
- 20.41 kmpl Mileage
- 199.26 CC Engine
- 386 KG GVW
Type
4 Stroke, Single Cylinder Liquid Cooled Si-Engine
Displacement
199.26 cc
Max. Power
6.7Kw @ 5500 rpm
Max. Speed
60 kmph
Transmission
4 Forward and 1 Reverse speed, Constant Mesh, Fork & Cam Type Shift Mechanism
Type
Semi Monocoque
Front & Rear
Swing Arm with Hydraulic damper & Coil Spring
Front & Rear
Drum, Hydraulic

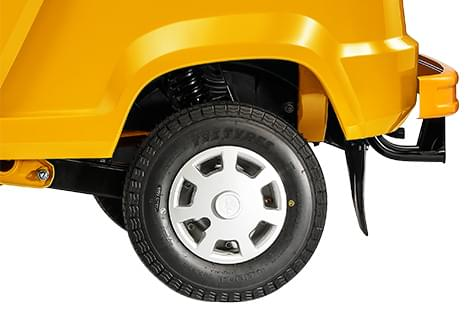

Rim Size – Front & Rear
3.00 D x 8″
Type Size – Front & Rear
4.00 – 8,76F 6 PR
4.00 – 8,76E 6 PR
Battery
12 V, 32 Ah
Head Lamp
35/35 W , DC
Tail Lamp , Stop Lamp
21 W, 5W
Turn Signal Lamp
10 W
Reverse Lamp
21 W
Warning Lamp
Malfunction Indication Lamp, Battery Indication Lamp, Low Engine Oil, Brake Oil & Fuel Warning (CNG)
Wheel Base
1990 mm
Wheel Track
1150 mm
Overall length
2647
Overall Width
1329
Overall Height
1740
Kerb Weight With 90% Fuel
408 Kg
Fuel Tank Capacity
28/33 Ltrs (Water Equivalent),Petrol-3 Ltrs (Bi-Fuel)
Ground Clearance
169 mm
Gradeability
10°
