TVS KING Duramax PLUS
Features
- 32 Ah Battery Capacity
- 10 hp Power
- 30 kmpl Mileage
- 225.8 CC Engine
- 366 KG GVW
Type

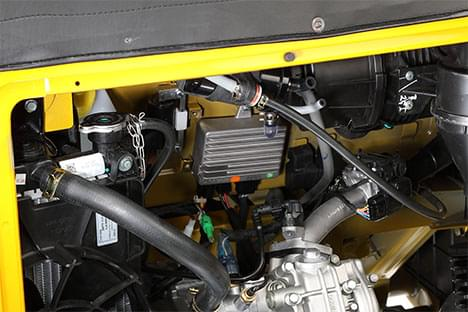

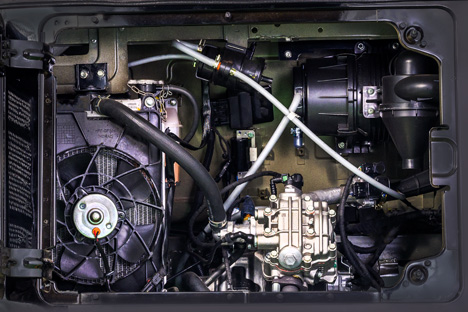

4 Stroke, Single Cylinder Liquid Cooled EFi-Si-Engine
Displacement
225.8 cc
Max. Power
7.9Kw @ 4750 rpm
Max. Torque
18.5 Nm @ 3000 rpm
Transmission
4 Forward and 1 Reverse speed, Constant Mesh, Fork & Cam Type Shift Mechanism
Type
Semi Monocoque
Front & Rear
Trailing Arm Coil Spring

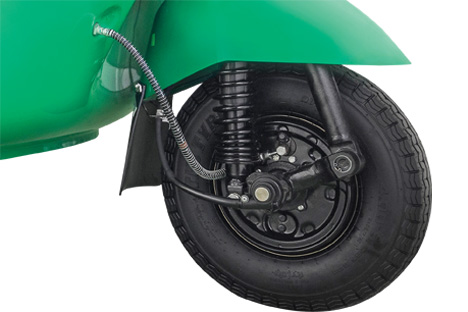

Front & Rear
Hydraulic Ribbed Drum Brake
Rim Size – Front & Rear
3.00 – 8″ 6PR
Battery
12 V, 32 Ah
Head Lamp
35/35 W , DC
Tail Lamp , Stop Lamp
21 W, 5W
Turn Signal Lamp
10 W
Reverse Lamp
21 W
Warning Lamp
Malfunction Indication Lamp, Battery Indication Lamp, Low Engine Oil, Brake Oil & Fuel Warning (CNG)

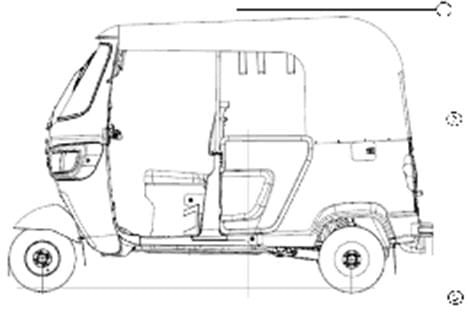

Wheel Base
1990 mm
Wheel Track
1150 mm
Overall length
2647
Overall Width
1329
Overall Height
1740
Kerb Weight WIth 90% Fuel
464 Kg
Gross Vehicle Weight
864 Kg
Ground Clearance
169 mm
Gradeability
12°
